مكان المنشأ:
دونغغوان ، الصين
اسم العلامة التجارية:
Fangsheng
إصدار الشهادات:
ISO9001:2015,IATF16949,RoHS,Reach,etc
رقم الموديل:
FS-TFT
| Attribute | Value |
|---|---|

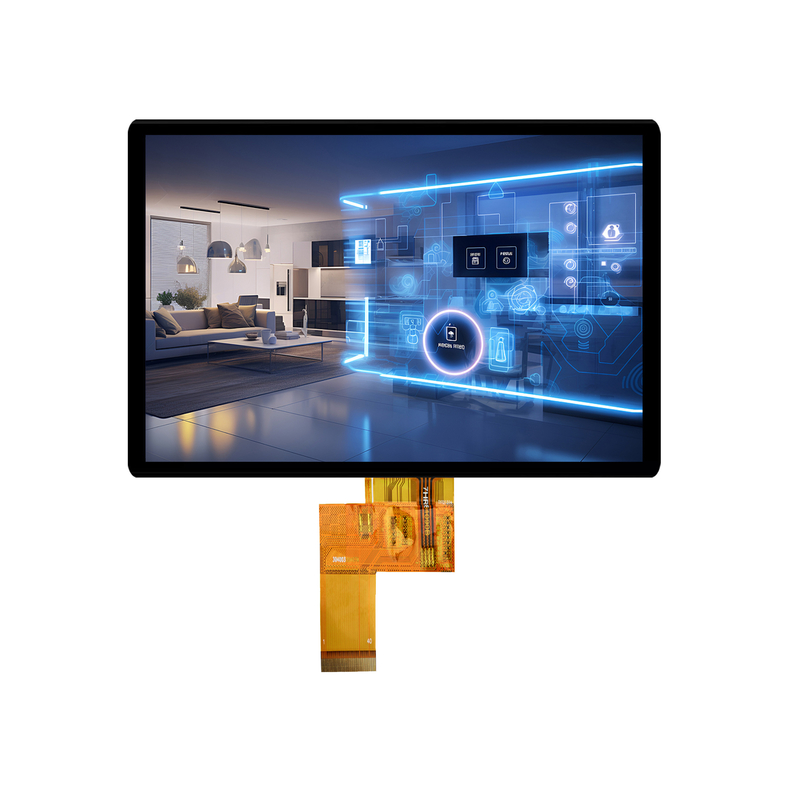

| Product Name | OEM ODM Support Medical Grade TFT Screen 5 Inch 7 Inch 10.1 Inch IPS TFT Screen with High Resolution |
| Size | 0.96-10.1 inch (Custom) |
| Interface | SPI/RGB/MIPI/LVDS, etc. |
| Resolution | 1024x600 (Custom) |
| Custom | PFC, CTP, Cover glass, etc. |
| Application | Industrial Control Medical Devices Smart Home, etc. |
| Quality | Strictly Tested for Medical & Industrial applications |
TFT LCD modules play a crucial role in modern medical equipment, offering sharp visuals and reliable performance. Customizable in size, resolution, brightness, and interface, these displays can be tailored to fit devices such as patient monitors, ultrasound machines, infusion pumps, and portable diagnostic tools.
High-quality TFT LCDs ensure clear readings of vital signs, imaging data, and other critical medical information. Their durability, fast response, and adaptability make them ideal for both hospital and mobile healthcare applications, meeting the specific needs of medical manufacturers.
| Parameter | Value |
|---|---|
| Resolution | 800x1280 |
| Interface | MIPI |
| IC (Driver Chip) | JD9366 |
| Type | Free V.A |
| Touch Panel (TP) | No TP |
| Operating Temperature | -20℃ ~ 70℃ |
| Brightness | 450 nits |
| Outline Dimensions (mm) | 103.56*162.38*2.70 |
